High Flow / Heavy Duty
Max.Working Pressure
690 Bar (10000 PSI)
Flow size (mm)
06 / 09 / 13 / 19 / 25 / 30
PDF
ISO 16028 Norm
Max.Working Pressure
400 bar (5800
PSI)
Flow size (mm)
05 / 06 / 10 / 12 / 16 / 19
PDF
Japanese Profile Hydraulic Coupling
Max.Working Pressure
350 bar (5.100
PSI)
Flow size (mm)
06 / 10 / 13 / 16 / 19 / 25 / 32 / 37
PDF
Heavy Duty
Max.Working Pressure
350 bar (5.100
PSI)
Flow size (mm)
06 / 10 /13 / 16 / 19 / 25 / 32 / 37
PDF
Residual Pressure Connection / Disconnection
Max Working Pressure
500 Bar (7250 PSI)
Flow size (mm)
07 / 08 / 10 /11 / 12 / 15 / 19 / 25 / 33
PDF
Non-Spill Technology
Max Working Pressure
500 Bar (7250 PSI)
Flow size (mm)
04 / 06 / 08 10 / 12 / 15 / 20 / 25 /32 / 37 / 50 / 75
PDF

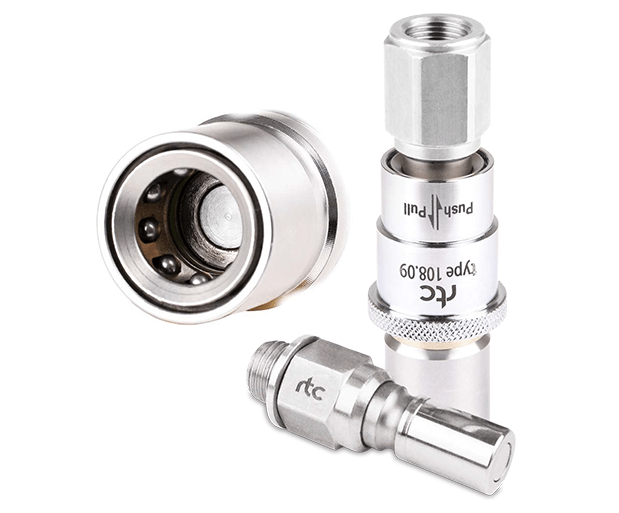

One Hand
Connection“PUSH-PULL”Disconnection
Max.Working Pressure
250 Bar (2610 PSI)
Flow size (mm)
03 / 06 / 07 / 09 / 12 / 16
PDF
Non-Spill Technology / For Hot Runner Systems
Max.Working Pressure
450 Bar (6525 PSI)
Flow size (mm)
03 / 05 / 09 / 12 / 20
PDF
Non-Spill Technology
Max.Working Pressure
450 Bar (6525
PSI)
Flow size (mm)
06 / 08 / 09 / 12 / 16
PDF
Safe Locking Mechanism for Vibrating Applications
Max.Working Pressure
500 bar (7250
PSI)
Flow size (mm)
08 / 12 / 20 / 25 / 33
PDF
Medium Pressure
Max.Working
Pressure
250 Bar (2610 PSI)
Flow size (mm)
06 / 07 / 12 / 19 / 25 / 32 / 50
PDF
High Pressure
Max.Working
Pressure
2000 Bar (362590 PSI)
Flow size (mm)
04 / 06 / 10 / 16 / 20 / 32
PDF
Flat Face / High Flow Rate
Max.Working Pressure
64 Bar (930 PSI)
Flow size (mm)
03 / 05 / 07 / 09 / 12 / 19
PDF
